Smart LED Controller SD-250W (1 channel) is a cutting-edge product of the MASTER Smart Home line, suitable for managing and controlling lighting intensity of 12-24V DC LED strips. The output power of the product can be expanded indefinitely by adding amplifiers thereby making any electrical application possible. Adjusting the intensity of your hidden lighting locally with a push-button, 1-10V protocol and remotely via the MASTER Smart Home app provides the ultimate comfort. The following user manual will help you install the “MASTER Smart Home” app for Android or iOS and enjoy the “smart” lighting control functions.
Download the SD-250W manual
LED CONTROLLER: 1 CHANNEL (Digital)
OPERATING VOLTAGE: 12-24V DC
OUTPUT POWER: 250W/12V & 500W/24V

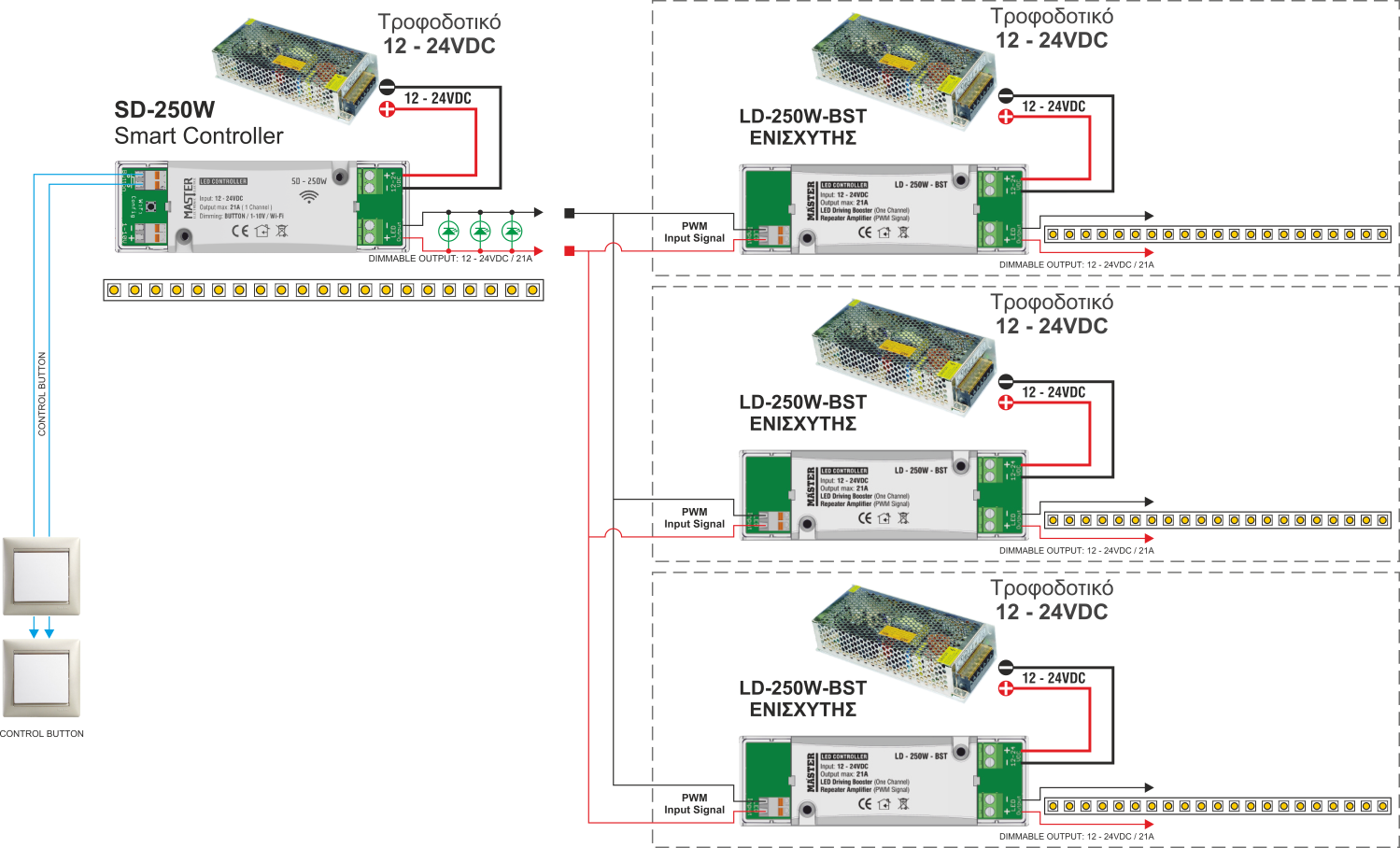

OUTPUT POWER BOOST: The output power of the product can be expanded indefinitely by adding the amplifiers LD-250W-BST with output power 250W/12VDC and 500W/24VDC each.
- of operation: -20°C to +50°C
- of storage: -20°C to +60°C
WIRE SIZE: ∅0.5 mm to ∅3.5 mm
FUNCTION: Soft Start
FUSE: Electronic (short-circuit, overheating and overvoltage protection with automatic reset to operation)
INSTALLATION INSTRUCTIONS• To prevent any accidents, installation must be carried out by quilified personel
