FLUSH-MOUNTED SWITCH 230 VAC / 400W SW-400B
The flush-mounted switch 1 channel SW-400B is a cutting-edge product of the MASTER Smart Home line, suitable for controlling and managing (on-off) your lighting and electrical appliances. Automate, control and inspect the state of your electrical appliances, with the ability to operate locally via buttons and online via internet or Wi-Fi using smartphone, tablet or PC. The following user manual will help you install the “MASTER Smart Home” app for Android or iOS and enjoy the “smart” lighting control functions.
Download the SW-400B manual
Features
- Visualization, control and management of lighting and electrical appliances (on - off)
- User-friendly, easy-to-use interface
- Works with the Google Assistant voice commands
- Secure connection to Wi-Fi
- No hub/gateway is required
- Time-schedules
- Maximum economy and comfort through smart scenes
- Low implementation cost in existing or new installations
- Remote control via Wi-Fi and Internet with the “MASTER Smart Home” app for smartphone, tablet and PC and local control via button.
Technische Daten
FLUSH-MOUNTED SWITCH: 1 Channel (Electronic)
OPERATING VOLTAGE: 180 – 230V AC
OPERATING FRREQUENCY: 50Hz
OUTPUT POWER: 400W
STAND BY CONSUMPTION: ≤ 1W
TEMPERATURE CONDITIONS:
- of operation -20°C to +50°C
- of storage -20°C to +60°C
WIRE SIZE: ∅0.5 mm to ∅3.5 mm
MOUNTING: Electrical switch box min. 40mm
FUSE: Electronic (overheating and overvoltage protection with automatic reset to operation)
CONTROL:
- Button: With one or more parallel buttons
- (ON/OFF) with instant push - Remote: With the MASTER Smart Home app for smartphones or tablets over Wi-Fi or Data
INSTALLATION INSTRUCTIONS:
- To prevent any accidents, installation must be carried out by qualified personnel
- Improper installation or use can result in electric sock or fire
- Install the product according to the electrical draft of installation

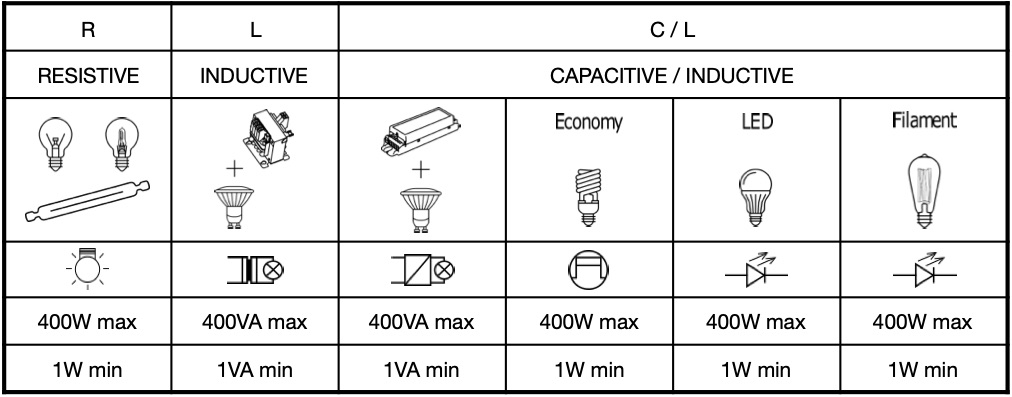

Electric Loads
The product complies with the requirements of the following EU Directives:
• 2014/30/EE (EMC) • 2014/35/EE (LVD)
• 2014/30/EE (EMC) • 2014/35/EE (LVD)
This product should be disposed of in accordance with national laws and environmental protection requirements
Draft of Electrical Installation
